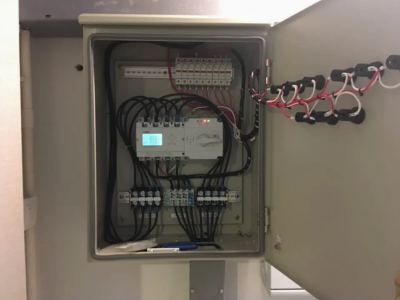

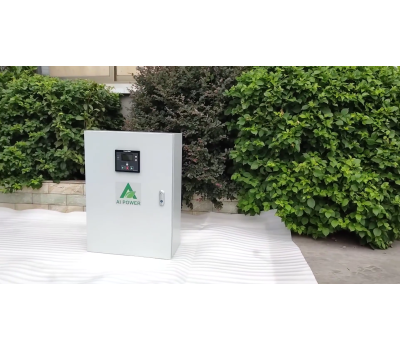

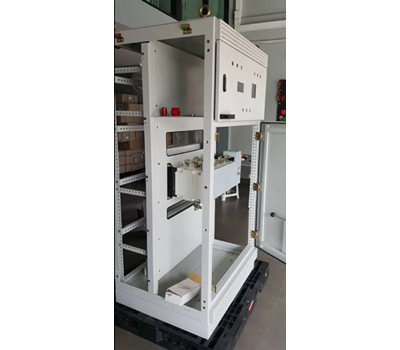

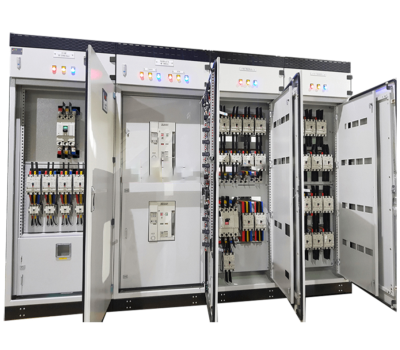

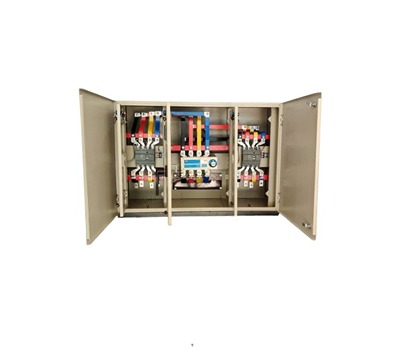

An Auto Changeover Switch Panel , commonly known as an Automatic Transfer Switch (ATS) Panel, is an advanced electrical control system designed to automatically switch power supply between multiple sources, such as the main grid, backup generator, or alternative energy sources like solar power, in the event of a power failure or outage. This ensures uninterrupted power supply to critical loads, making it an essential solution for applications where downtime is unacceptable, such as hospitals, data centers, and industrial facilities.
The Auto Changeover Switch Panel uses intelligent controllers to monitor power sources and initiate seamless switching within milliseconds, ensuring continuous operation without manual intervention. These panels are engineered for reliability, safety, and efficiency, offering robust protection and compliance with international electrical standards.
- Automatic Power Switching : Seamlessly transitions between power sources (e.g., grid to generator) within milliseconds to ensure uninterrupted power.
- Intelligent ATS Controller : Monitors voltage, frequency, and power availability, automatically initiating source switching when needed.
- Manual Override Option : Allows manual switching for maintenance or operational flexibility.
- Robust Protection : Equipped with circuit breakers, surge protectors, and earth fault relays to safeguard against electrical faults.
- IP-Rated Enclosures : Offers IP54 (indoor) or IP65 (outdoor) protection against dust, moisture, and harsh environmental conditions.
- High-Quality Construction : Built with 14/16 SWG CRCA sheets or stainless steel, powder-coated with a 7/9-tank process for corrosion resistance.
- Real-Time Monitoring : Includes digital meters and indicator lights for monitoring power source status, voltage, and current.
- Customizable Configurations : Available in single-phase or three-phase systems, tailored to specific load and power source requirements.
- Remote Monitoring (Optional): Supports IoT or SCADA integration for remote diagnostics and control.
Auto Changeover Switch Panels are equipped with critical components to ensure reliable power switching and system protection. Key components include:
- Automatic Transfer Switch (ATS) Controller : Microprocessor-based controller that monitors power sources and triggers automatic switching.
- Motorized Changeover Switch : Electrically operated switch for seamless transition between power sources.
- Circuit Breakers (MCBs/MCCBs) : Protect the panel and connected loads from overloads and short circuits.
- Busbars : High-conductivity copper or aluminum busbars for efficient power distribution.
- Surge Protection Devices (SPDs) : Safeguard against voltage surges caused by lightning or grid fluctuations.
- Metering Devices : Voltmeters, ammeters, or multifunction meters to monitor electrical parameters of each power source.
- Indicating Lamps and Control Switches : Provide visual feedback on power source status (e.g., Grid ON, Generator ON) and enable manual operation.
- Relays : Include under-voltage, over-voltage, and phase-failure relays for enhanced fault detection.
- Wiring and Terminals : FRLS/HR FR insulated wires and stud-type or DIN-rail terminals for secure connections.
- Enclosure : Weatherproof, IP54/IP65-rated enclosure made of CRCA steel or stainless steel for durability.
| Parameter | Specification |
|---|---|
| Rated Voltage | 230V (Single-Phase) or 415V (3-Phase), 50/60 Hz |
| Rated Current | 16A to 4000A (Customizable) |
| Enclosure Material | 14/16 SWG CRCA Sheet or Stainless Steel, Powder-Coated |
| Degree of Protection | IP54 (Indoor), IP65 (Outdoor) |
| Busbar Material | Electrolytic-grade Copper or Aluminum |
| Switching Time | 10–50 milliseconds (Automatic) |
| Protection Devices | MCBs, MCCBs, SPDs, Earth Fault Relays |
| Control Type | Automatic with Manual Override |
| Surface Treatment | 7/9-Tank Powder Coating Process |
| Cable Entry | Top/Bottom, Gland-Type for Secure Terminations |
Auto Changeover Switch Panels are essential for ensuring uninterrupted power supply in a variety of critical applications, including:
- Hospitals : Continuous power for life-support systems, operating theaters, and medical equipment.
- Data Centers : Seamless switching to backup power to maintain server and IT infrastructure uptime.
- Industrial Facilities : Power continuity for production lines, machinery, and critical processes.
- Commercial Buildings : Backup power for offices, retail stores, and HVAC systems during outages.
- Residential Complexes : Uninterrupted power for apartments, lifts, and common area lighting.
- Telecommunication Centers : Reliable power for communication equipment and network infrastructure.
- Hotels and Shopping Malls : Continuous power for lighting, elevators, and guest services.
- Solar and Hybrid Systems : Switching between solar power, grid, and backup generators for energy-efficient operations.
- Uninterrupted Power Supply : Automatically switches to backup power within milliseconds, ensuring continuous operation.
- Enhanced Safety : Advanced protection devices prevent electrical faults, protecting equipment and users.
- High Reliability : Intelligent controllers and robust components ensure dependable performance in critical applications.
- Energy Efficiency : Optimizes power usage by selecting the most stable source, reducing wastage.
- Low Maintenance : Modular design and high-quality components minimize downtime and maintenance costs.
- Scalability : Supports additional power sources or load expansions for future needs.
- Cost-Effective : Reduces downtime costs and protects equipment from power-related damage.
- Environmental Resilience : Weatherproof enclosures ensure reliable performance in harsh outdoor conditions.
As a leading Auto Changeover Switch Panel manufacturer , we deliver high-quality, customized solutions to ensure uninterrupted power for your operations. Here’s what sets us apart:
- Advanced Technology : Our panels feature state-of-the-art ATS controllers for fast and reliable switching.
- Tailored Solutions : We design panels to match your specific power sources, load requirements, and environmental conditions.
- Quality Assurance : All panels are CPRI type-tested and undergo rigorous quality checks for reliability and safety.
- Expert Support : Our experienced engineers provide end-to-end support, from design consultation to installation and after-sales service.
- Competitive Pricing : We offer cost-effective solutions without compromising on quality or performance.
- Nationwide Reach : As a trusted electrical panel manufacturer in India , we ensure timely delivery and support across the country.
